Divot Bare Fiber Adapter – SC/APC
The Divot Bare Fiber Adapter SC/APC is a precision tool designed to provide temporary, tool-less fiber connections for bare optical fibers. It enables fast, reliable testing or patching of bare fibers to SC/APC connectorized systems—without the need for splicing or terminating.
Ideal for fiber testing, emergency restoration, lab environments, and quick diagnostics in the field, this adapter supports singlemode fibers and delivers low insertion loss with high repeatability.
✅ Key Features
- ✅ Compatible with SC/APC (angled polish) connectors
- ✅ Allows direct connection of bare fibers without termination

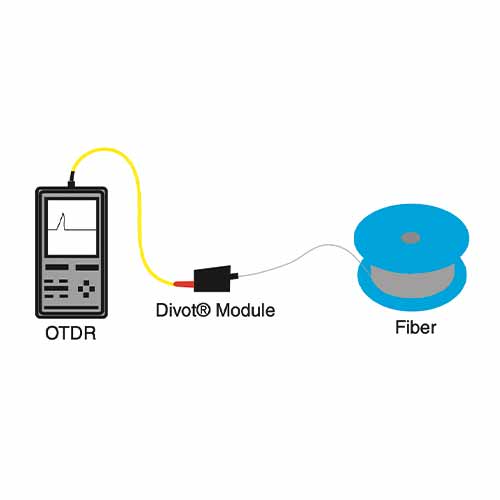

- ✅ Ideal for fiber testing, fault diagnosis, and temporary patching
- ✅ Tool-free design – fast insertion and release
- ✅ Provides low insertion loss and secure alignment
- ✅ Reusable and compact – great for field or bench use
📦 Specifications
- Connector Type: SC/APC (green)
- Fiber Type: Singlemode (SM) bare fiber
- Polish Type: Angled Physical Contact (APC)
- Insertion Loss: Typically ≤ 1.0 dB
- Repeatability: High (for multiple uses)
- Material: Durable thermoplastic with internal alignment sleeve
- Use Case: Test and measurement, temporary links, lab environments
- Reusability: Yes
The Divot Bare Fiber Adapter – SC/APC offers a fast, clean, and reliable solution for connecting bare fibers to live optical networks or test equipment—an essential tool for fiber technicians and network engineers.
